High Quality SMO 254 Angle, Channel, Beam, Chain Worldwide
Renaissance Fittings and Piping Inc. is one of the pioneer suppliers and trader of 254 SMO Other Products, which is available in different sizes, designs and shapes in customized options for our clients. SMO 254 Angle has been shown that nickel has very little statistically detectable effect on pitting corrosion resistance over the full range of austenitic stainless steels. When SMO 254 C-Channel is not satisfactory for use in a particular application due to susceptibility to SCC, then selection of the other alloys for that application would be an exceedingly risky proposition. Support for the similar performance comes from the very similar Pitting Resistance Equivalent number for SMO 254 Chain. The Pitting Resistance Equivalent number employs statistical regression in SMO 254 H-Beam to relate pitting resistance to the chemical composition of a stainless steel. The Pitting Resistance Equivalent number calculations from various investigators have demonstrated that the pitting resistance of SMO 254 I-Beam depends primarily on the level of Cr, Mo, and N content. The sensitivity of the Pitting Resistance Equivalent number data is such that within grade variations of Cr, Mo, and N near the nominal values for SMO 254 T-Beam. The apparent Pitting Resistance Equivalent number variation of Alloy 254 Angle is of minor import compared to effects from surface finish, normal variations in practical annealing conditions, and variations in the corrosiveness of the environment. Low nickel content of our Alloy 254 Chain makes them price stable.
SMO 254 Angle, Channel, Beam, Chain Specifications |
||
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

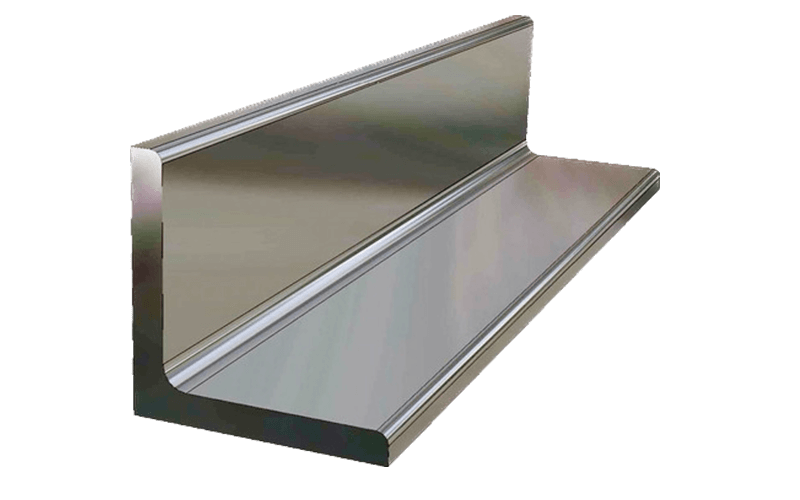

| SMO 254 Angle |
: | 5mm to 9mm |

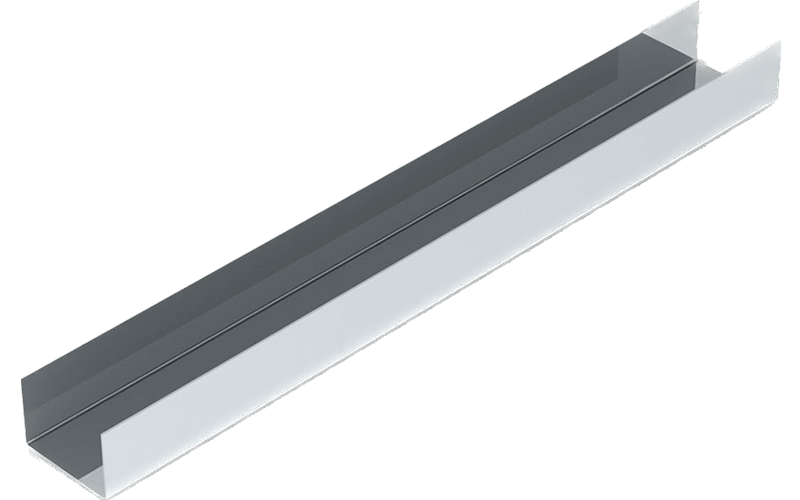

| SMO 254 Channel |
: | 40mm*20mm~300mm*300mm |
| SMO 254 Beam | : | 3″ thru 12.31″ |

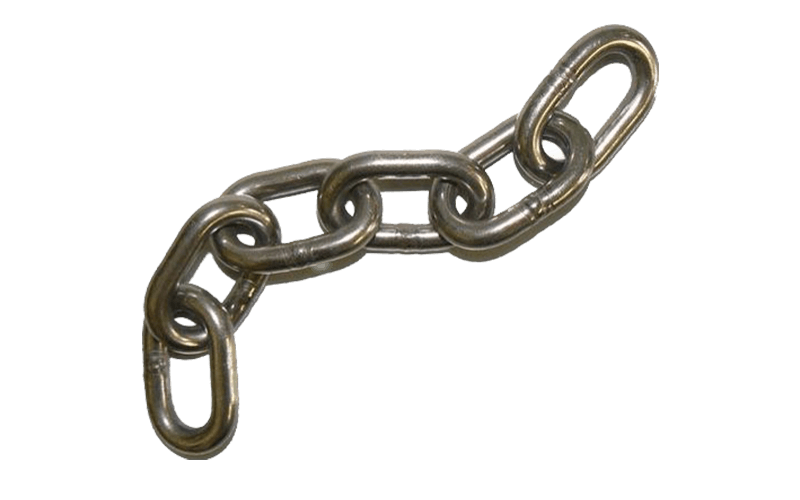

| SMO 254 Chain |
: | 1/8 inch – 1/2 inch Diameter |
| Thickness |
: | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

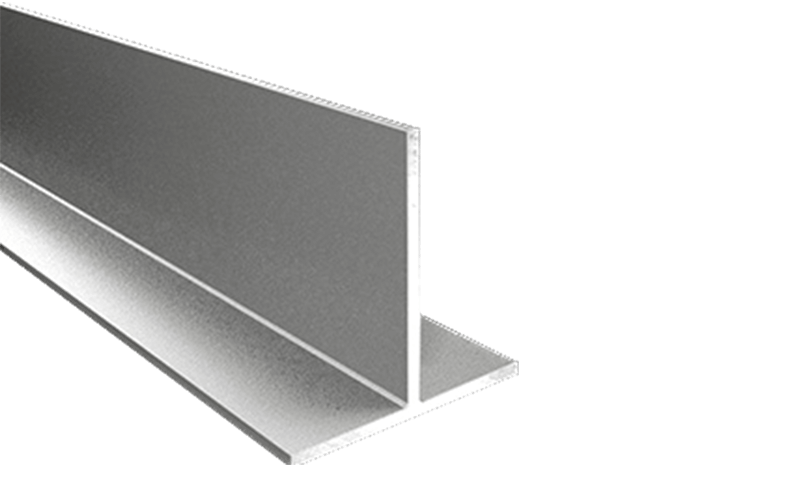

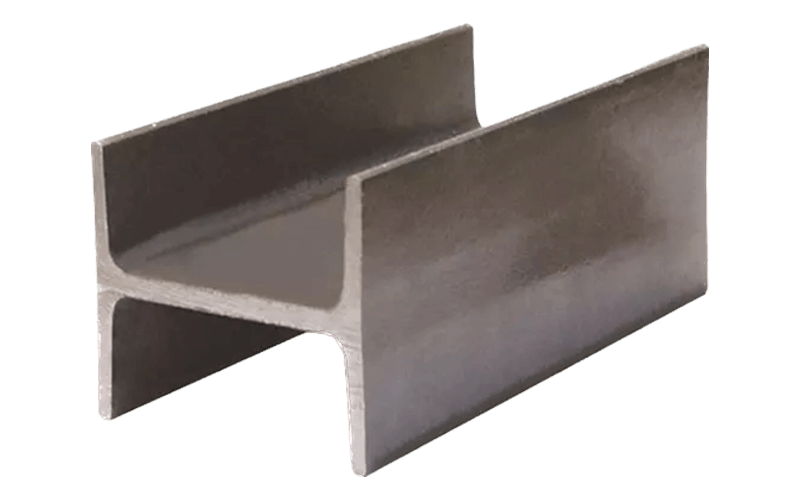

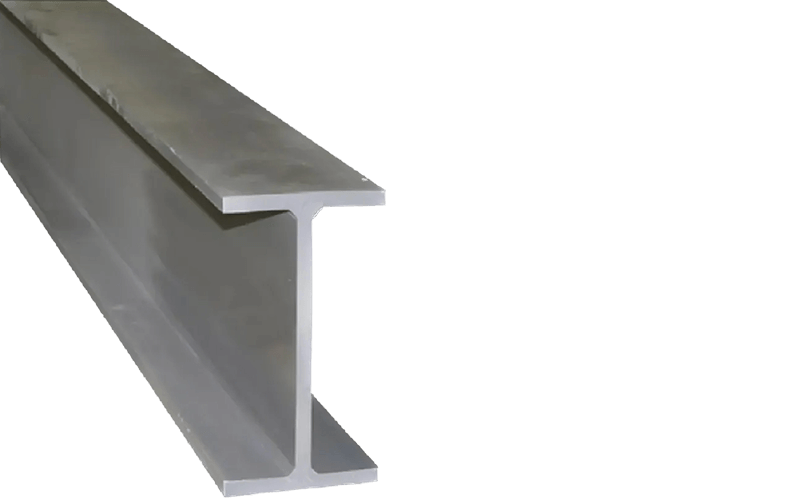

| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
254 SMO Angle, Channel, Beam, Chain Chemical Composition
| Grade | C | Mn | Si | Cu | S | P | Mo | Ni | Cr |
| SMO 254 | 0.02 | 1.0 | 0.08 | 0.5-1.0 | 0.01 | 0.03 | 6.0-6.5 | 17.5-18.5 | 19.5-20.5 |
SMO 254 Angle, Channel, Beam, Chain Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
Equivalent Grades for 254 SMO Angle, Channel, Beam, Chain
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | 2378 | – | – | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
We are manufacturer and supplier of Long Radius Bends, Butt-weld Fittings, Forged Fittings, Outlets, Flanges, Fasteners, Pipes, Tubes, Sheets, Plates and Coils, Bars and Wires in materials like SMO254, Duplex, Super Duplex, Aluminum, Titanium, Authentic Steel, Ferrite Steel, Nickel alloys, Non Ferrous Metals, etc. Many factors combine to achieve the success of a trading business i.e. the right product mix, a broad knowledge of products & their applications, good business relationships, logistics & financials expertise, proximity to the customer and last but not the least the appropriate range of support service.
- Best in the industry for stainless steel and alloys
- We maintain a large stock of our products to provide a perennial supply of goods
- We aim to provide Quality product at competitive prices to our customer
- Customer oriented products and excellent support
We produces variety of SMO 254 products as per your business need. Just send us your requirements and we will provide every information you need.
Yes we supply our product outside of India. Delivery is depend upon logistics and other factors. Please mention your country and delivery location while putting enquiry.
We manufactors and exports variety of products other than SMO. You can check our catelog from our main website catelog.
We only produce high quality products. If you found any compromisation in the quality of your received product then please reach our to us we will help you to get better.
